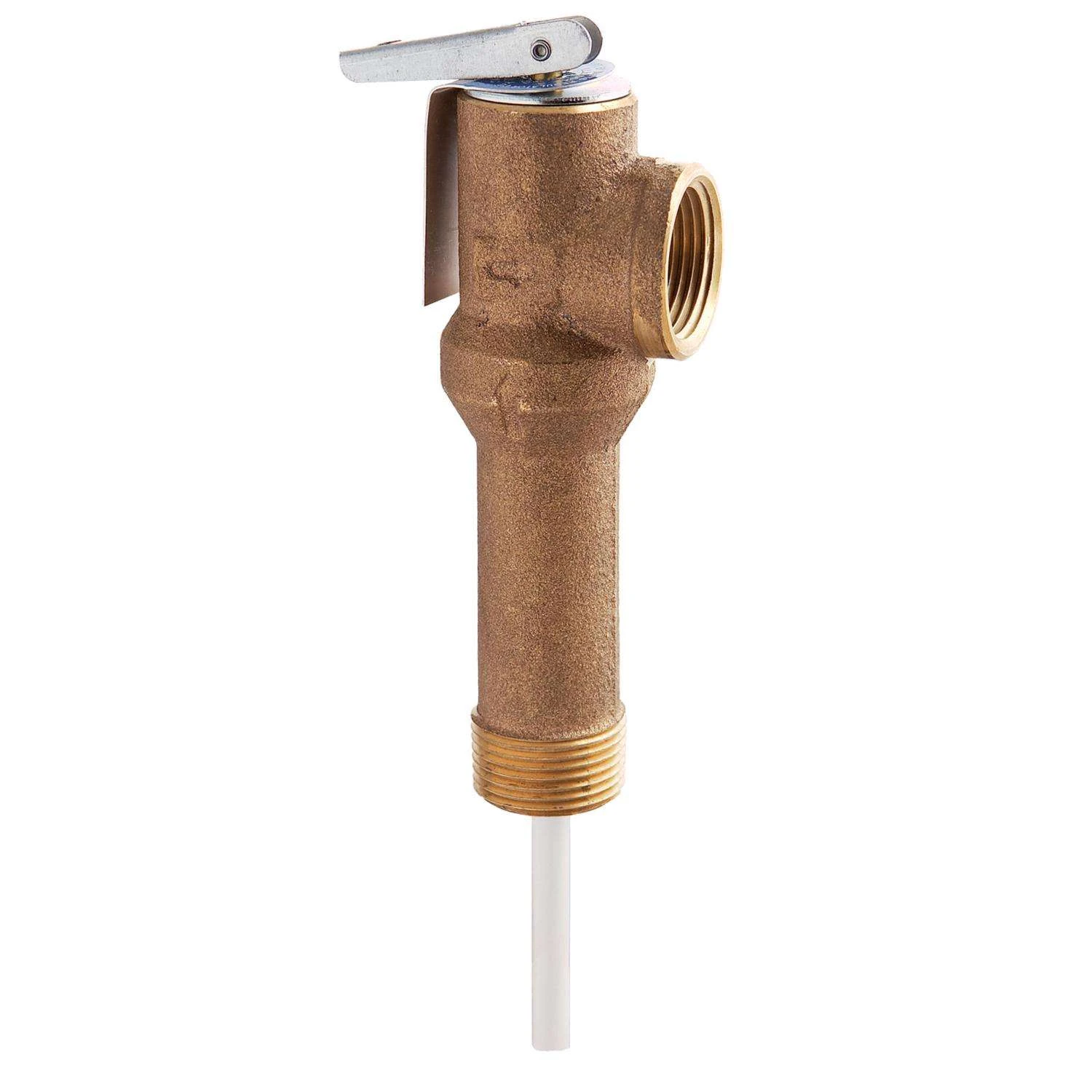

Watts LLL100XL 3/4 In. MNPT Bronze Temperature And Pressure Relief Valve 1 Pc

Watts Series LLL100XL have extended inlet shanks for use with the new generation of water heaters containing extra thick insulation. These valves eliminate the use of an extension nipple required with standard shank length models. The combined 2-in-1 Temperature & Pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions. Watts self-closing combination T&P relief valves are design certified, rated and listed by CSA to the requirements of ANSI Z21.22; and by the National Board to the requirements of ASME Section IV. They provide fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/Hr. Male inlet and female outlet.Self closing safety valve for hot water heatersBronze body constructionUnique thermostat with special thermo-bonded coatingMade with high quality stainless steel springPressure steam discharge capacity 105,000 BTU per hourSuitable for water heaters with up to 3 inch (76mm) of insulationWidth: 1-7/8 in.*Weight: 0.68 lb.
