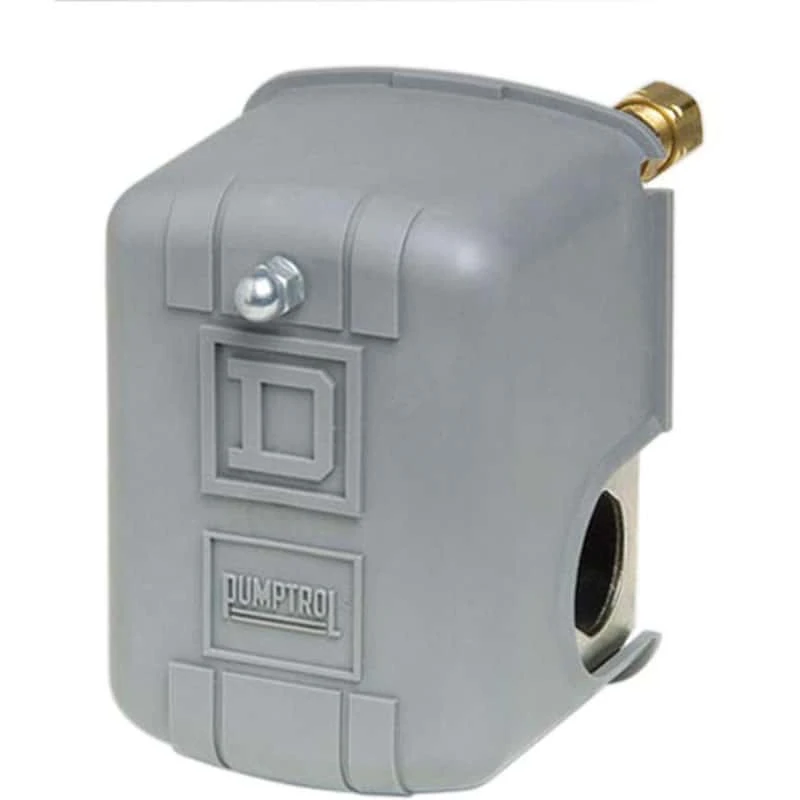

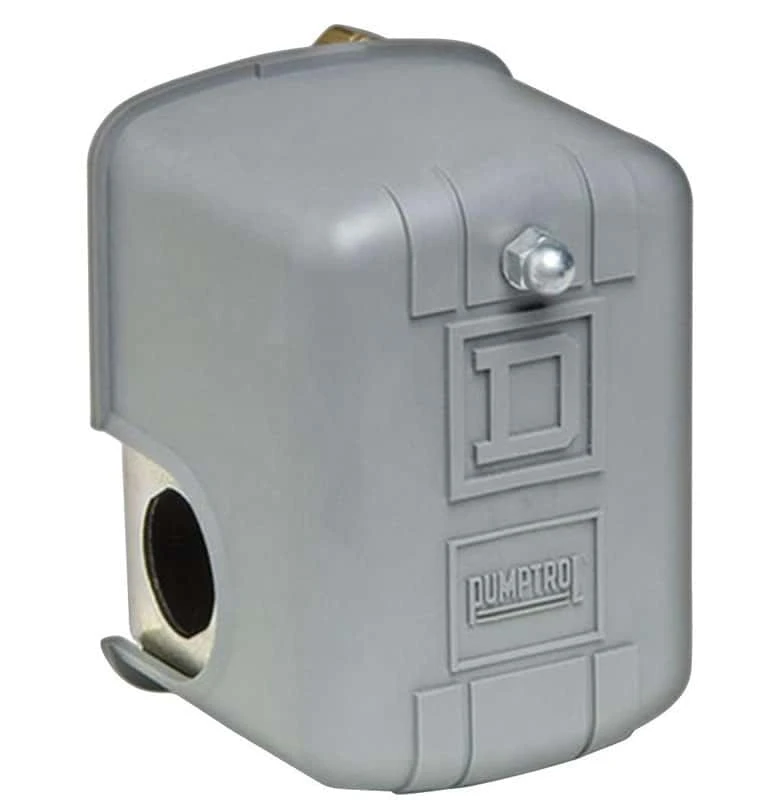

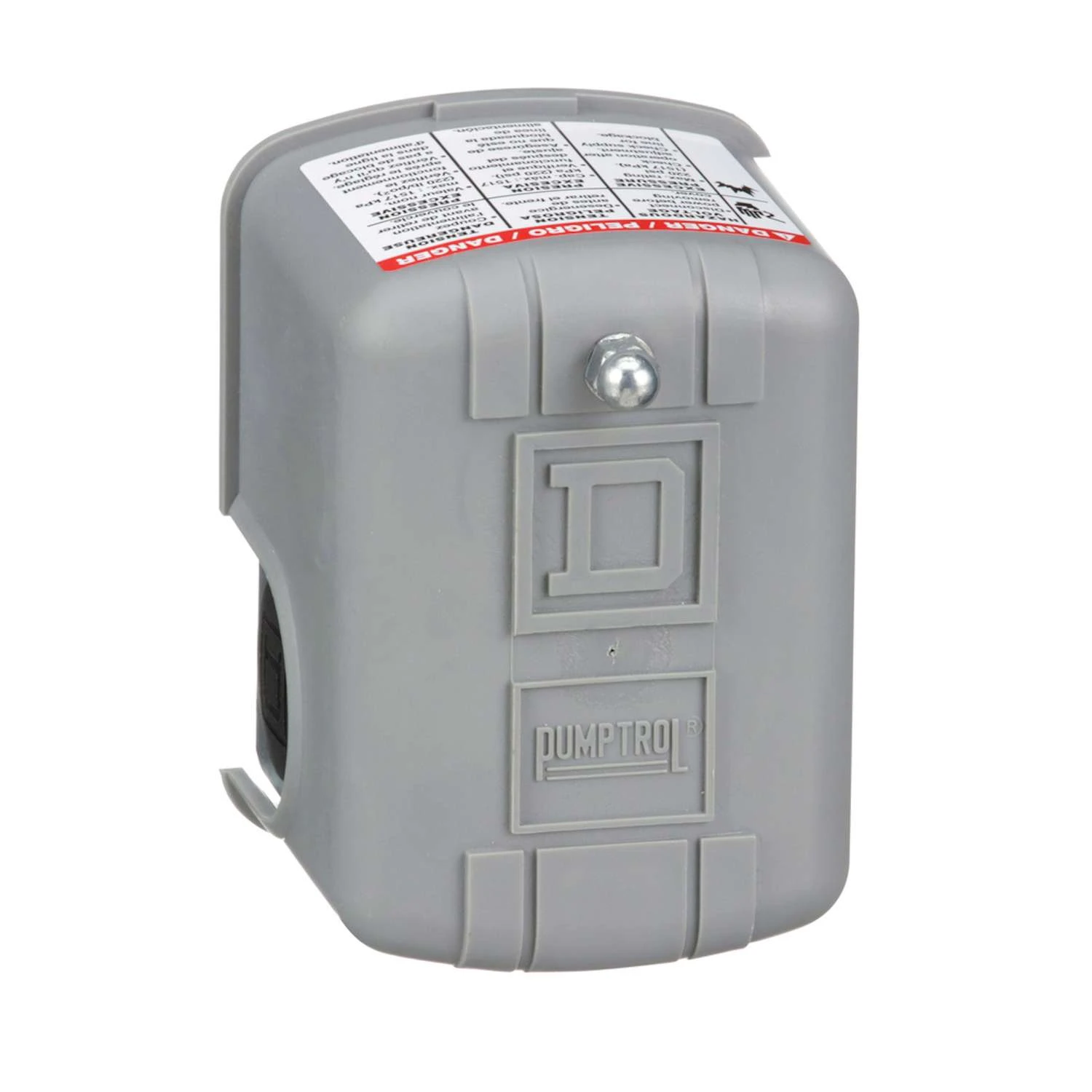

Square D Pumptrol 95 Psi 125 Psi Pressure Switch

This Square D pumptrol FHG12J52XBP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. For over 75 years, Square D pressure switches continue to meet the needs of our customers. The FHG12J52XCP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The non-adjustable differential is 30 PSI and the adjustable cut-out range is 70 PSI to 150 PSI. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.Suitable for control of small electrically driven air compressorsStandard-action contacts open on rising pressureFor use with air only, fixed differential turns off at 125 PSIUniversally accepted and recognized design is easy to wire, features drift proof cut-in and cut-out settings and has visible vertical contacts which are easy to inspectSwitch is UL listed and CSA certifiedPressure switch is ROHS compliantPressure switch is ROHS compliant
